Hikmicro
![Hikmicro](https://images.askari-sport.com/manufacturer/icon/150_150_75/00674.png)
Hikmicro
Thermal imaging camera Thunder 2.0 TQ35C
Description

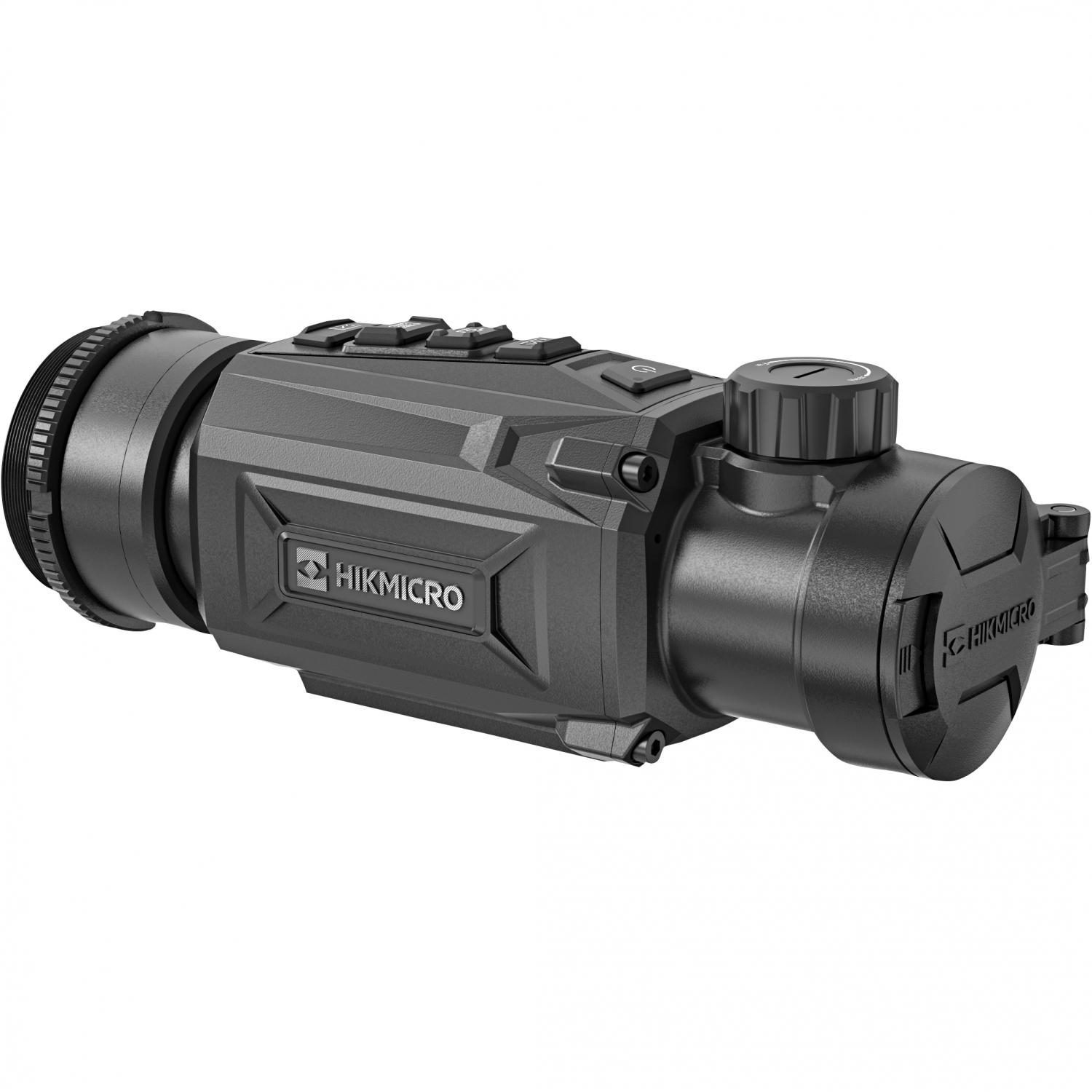

Hikmicro Thermal imaging camera Thunder 2.0 TQ35C
The HIKMICRO THUNDER 2.0 TQ35C thermal imaging camera with attachment features a 384 × 288 thermal detector and a 1024 × 768 OLED display. The high thermal sensitivity due to a NETD ≤ 20 mK (25 °C, F# = 1.0) ensures perfect detail detection even in the most difficult weather conditions, as soon as an object shows minimal temperature differences to the background. The runtime of up to 6.5 hours of continuous operation is another highlight for use in hunting.
Highlights:
- 384 × 288 px resolution with 12 μm sensor
- 1024 × 768 px resolution 0.39-inch OLED display
- Supports image brightness and tone adjustment
- Up to 6.5 hours of continuous operation
- Replaceable and rechargeable lithium-ion battery as battery pack
- Video recording incl. Audio recording
- High shock resistance up to 1000 g/0.4 ms
- Detection range of a person up to 1. 800 m
- Recoil-activated recordings (7 seconds before and 7 seconds after the recoil impulse are automatically stored)
- Highly sensitive thermal module with a NETD ≤ 20 mK (25 °C, F# = 1.0) - the same technology as in the HIKMICRO Falcon series is installed here
Technical data:
Thermal Module:
- Image Sensor: Vox Uncooled Focal Plane Arrays
- Resolution: 640 x 512
- Frame Rate: 50Hz
- Pixel Interval: 12µm
- NETD: less than 20 mK (@25°C), F#=1.0
- Focal length: 35 mm
- Detection range: 1800 m
- Field of view: 12.52° x 10.03° / 21.94 m x 17.55 m
- Aperture: F1.0
- Magnification: 1
- Minimum focus distance: 2 m
Image:
- Monitor: 0.39 inch, OLED, 1024 × 768
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction): Automatic, Manual, External Correction
- Image Brightness Adjustment: Yes
- Display Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
System Function:
- Memory: Built-in Memory Module (16 GB)
- Video Recording: Built-in Video Recording
- Snapshot: Built-in Image Recording
- Crosshair: No
- Wi-Fi: Yes
- Hot Track: Yes
- Standby Mode: Yes
- Recoil Activating Video Recording: Yes
- Audio recording: Yes
- Maximum recoil: 1000g / 0.4ms
- Image calibration: Yes
- Focus knob: Yes
Battery:
- Battery type: removable Li-ion battery
- Operating time: 6.5 h with Wi-Fi off
- Battery capacity indicator: Yes
- Overcharge protection: Yes
- Reverse polarity protection: Yes
- Power: 5 VDC/ 2A, USB-C
General:
- Protection class: IP67
- Dimensions: 186. 53 mm × 68.04 mm × 67.4 mm
- Weight: 538 g
- Operating temperature/humidity: From -30 °C to 55 °C; humidity 90% or less
Scope of delivery:
- Thunder TQ35C 2. 0
- Quick start guide
- Dust cloth
- USB cable
- 2 x rechargeable batteries
- Charger
Legal notice:
The purchase or sale of night vision and close-up devices and thermal imaging monoculars does not require a licence in Germany, nor does the use of thermal imaging monoculars for hunting. The carrying and use as a hand-held device (monocular by attaching an eyepiece) of attachment devices (night vision and thermal image) does not require a permit in Germany.
In some federal states, attaching the attachments to a target optic for hunting is prohibited (see data sheet C).
Highlights:
- 384 × 288 px resolution with 12 μm sensor
- 1024 × 768 px resolution 0.39-inch OLED display
- Supports image brightness and tone adjustment
- Up to 6.5 hours of continuous operation
- Replaceable and rechargeable lithium-ion battery as battery pack
- Video recording incl. Audio recording
- High shock resistance up to 1000 g/0.4 ms
- Detection range of a person up to 1. 800 m
- Recoil-activated recordings (7 seconds before and 7 seconds after the recoil impulse are automatically stored)
- Highly sensitive thermal module with a NETD ≤ 20 mK (25 °C, F# = 1.0) - the same technology as in the HIKMICRO Falcon series is installed here
Technical data:
Thermal Module:
- Image Sensor: Vox Uncooled Focal Plane Arrays
- Resolution: 640 x 512
- Frame Rate: 50Hz
- Pixel Interval: 12µm
- NETD: less than 20 mK (@25°C), F#=1.0
- Focal length: 35 mm
- Detection range: 1800 m
- Field of view: 12.52° x 10.03° / 21.94 m x 17.55 m
- Aperture: F1.0
- Magnification: 1
- Minimum focus distance: 2 m
Image:
- Monitor: 0.39 inch, OLED, 1024 × 768
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction): Automatic, Manual, External Correction
- Image Brightness Adjustment: Yes
- Display Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
System Function:
- Memory: Built-in Memory Module (16 GB)
- Video Recording: Built-in Video Recording
- Snapshot: Built-in Image Recording
- Crosshair: No
- Wi-Fi: Yes
- Hot Track: Yes
- Standby Mode: Yes
- Recoil Activating Video Recording: Yes
- Audio recording: Yes
- Maximum recoil: 1000g / 0.4ms
- Image calibration: Yes
- Focus knob: Yes
Battery:
- Battery type: removable Li-ion battery
- Operating time: 6.5 h with Wi-Fi off
- Battery capacity indicator: Yes
- Overcharge protection: Yes
- Reverse polarity protection: Yes
- Power: 5 VDC/ 2A, USB-C
General:
- Protection class: IP67
- Dimensions: 186. 53 mm × 68.04 mm × 67.4 mm
- Weight: 538 g
- Operating temperature/humidity: From -30 °C to 55 °C; humidity 90% or less
Scope of delivery:
- Thunder TQ35C 2. 0
- Quick start guide
- Dust cloth
- USB cable
- 2 x rechargeable batteries
- Charger
Legal notice:
The purchase or sale of night vision and close-up devices and thermal imaging monoculars does not require a licence in Germany, nor does the use of thermal imaging monoculars for hunting. The carrying and use as a hand-held device (monocular by attaching an eyepiece) of attachment devices (night vision and thermal image) does not require a permit in Germany.
In some federal states, attaching the attachments to a target optic for hunting is prohibited (see data sheet C).
